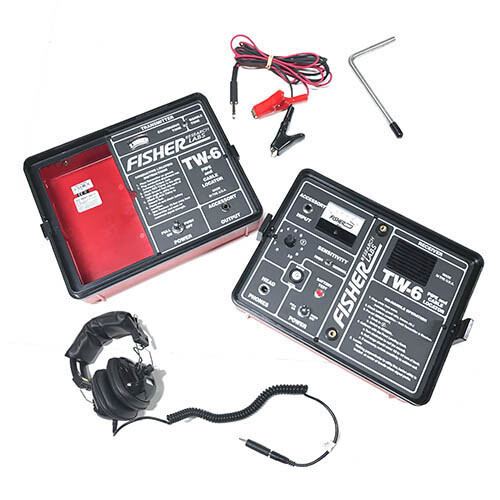

Subscribe to Our Newsletter Fisher Labs TW-6-KIT Pipe and Cable Locator Kit with Handle, Case & Headphones Brand: Fisher Labs Model No: TW-6-KIT Our Model No: TW6KIT Product Overview Features Includes hard carrying case, stereo headphones, ground rod and harness assembly, and search handle Conduct "blind" searches of an area to locate an underground pipe or cable where the starting point is unknown Noise cancelling circuitry eliminates power line interference Ground Rod/Harness Assembly provides a "ground" for efficient conductive tracing Receiver Operating Frequency: 81.92 kHz + .005% Receiver Batteries: 8 each AA (NEDA 15) Receiver Weight: 3 lbs. (1.36 kg) Receiver Dimensions: 11 1/2 x 9 x 3 in. (29 x 23 x 7.6 cm) Sensitivity: Normal: 400 uV typical; High: 8 uV typical Signal-to-noise Ratio: 110 dB Receiver Operating Temperature: -10�F to +120� (-23�C to +48�C), depending on batteries used Transmitter Operating Frequency: 81.92 kHz + .005% Transmitter Batteries: 8 each AA (NEDA 15) Transmitter Weight: 2.5 lbs. (1.1 kg) Transmitter Dimensions: 11 1/2 x 9 x 3 in. (29 x 23 x 7.6 cm) Transmitter Operating Temperature: -10�F to +120�, (-23�C to +48�C) Applications: Find underground pipes, cables, manhole covers, vaults, valve boxes and other metallic objects Utility Gas and petroleum pipelines Description The Fisher Labs TW6-KIT Crystal Controlled Frequency Pipe and Cable Locator is a 2-box locator, excellent for blind searches. Unlike other units that use a separate transmitter and receiver, the TW-6 when mounted on the handle, can conduct "blind" searches of an area to locate an underground pipe or cable when the starting point is unknown. Crystal controlled frequency in both transmitter and receiver increases tracing distance. VCO (Voltage Controlled Oscillator) gives a wider range of audio signal to indicate the presence of metal. Even after the meter pegs, the audio signal goes much higher in pitch and volume. Noise canceling circuitry eliminates power line interference. The TW6-KIT offers conductive and inductive modes of tracing. Conductive tracing is the preferred method for tracing because the transmitter makes a direct physical hook-up with the line to be traced. Tracing distances are increased 25-50% over the inductive method. Inductive locating is preferred when the starting point is unknown or not compatible with conductive tracing. The included stereo headphones preserve the battery life of the TW6 and prevents the sounds from annoying bystanders. They also allow the user to hear subtle changes in the sound more clearly, particularly if searching in a noisy location. TW6-KIT includes a hard carrying case for protection in transit, as well as a 3-piece handle kit. Included Components 1 - Transmitter 1 - Receiver 1 - User Manual 1 - Ground Rod Harness Assembly(GROD-TW6) 1 - Hard Carrying Case (TW6-Case) 1 - Stereo Headphones (9720950000) 1 - Search Handle (HANDLEKIT-TW6) Terms & Conditions Please note estimated delivery time above. Contact us for details or if you have a delivery requirement. We ask for your patience while striving to ensure your shipment arrives quickly and accurately. Domestic Shipping FREE Standard Shipping on items OVER $75 and less than 30lbs to continental U.S. Add $36 for AK, HI, or PR. Please contact us for shipping rates to any overseas US territories including: Northern Mariana Islands, Guam, Puerto Rico, U.S. Virgin Islands and American Samoa. PO Boxes/APOs require USPS shipping and may therefore experience longer lead times 6.25% Sales Tax for shipping to MA International Shipping Due to international voltage requirements, please ask us prior to purchasing to confirm your product will operate correctly in your country. Please contact us for shipping rates to any overseas U.S. territories. International customers are responsible for all shipping charges, including any duties or taxes.
