Description

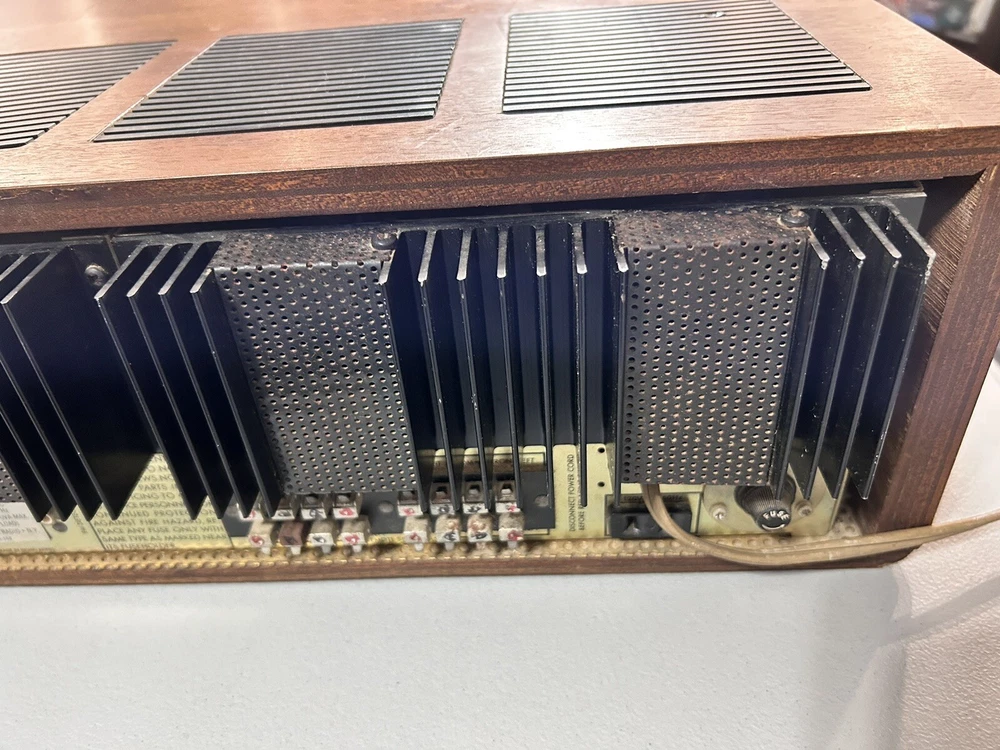

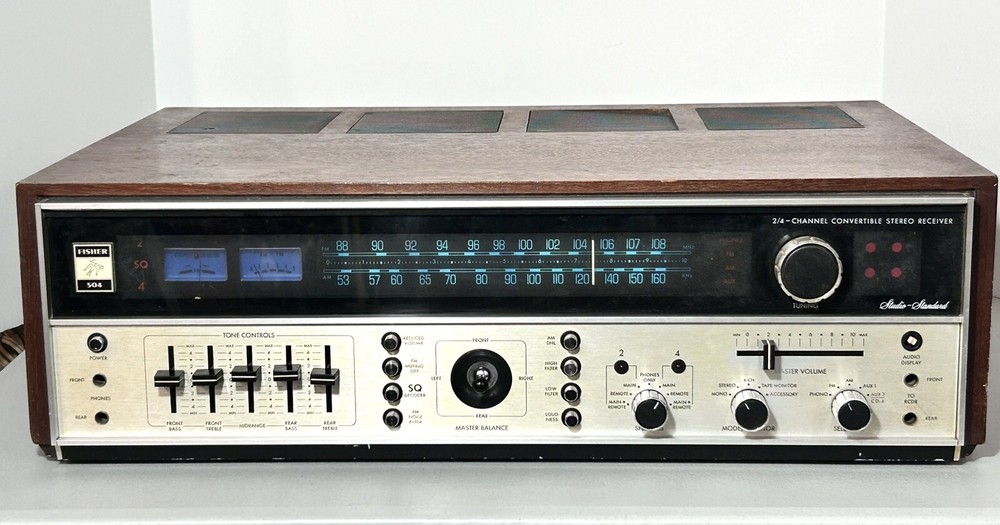

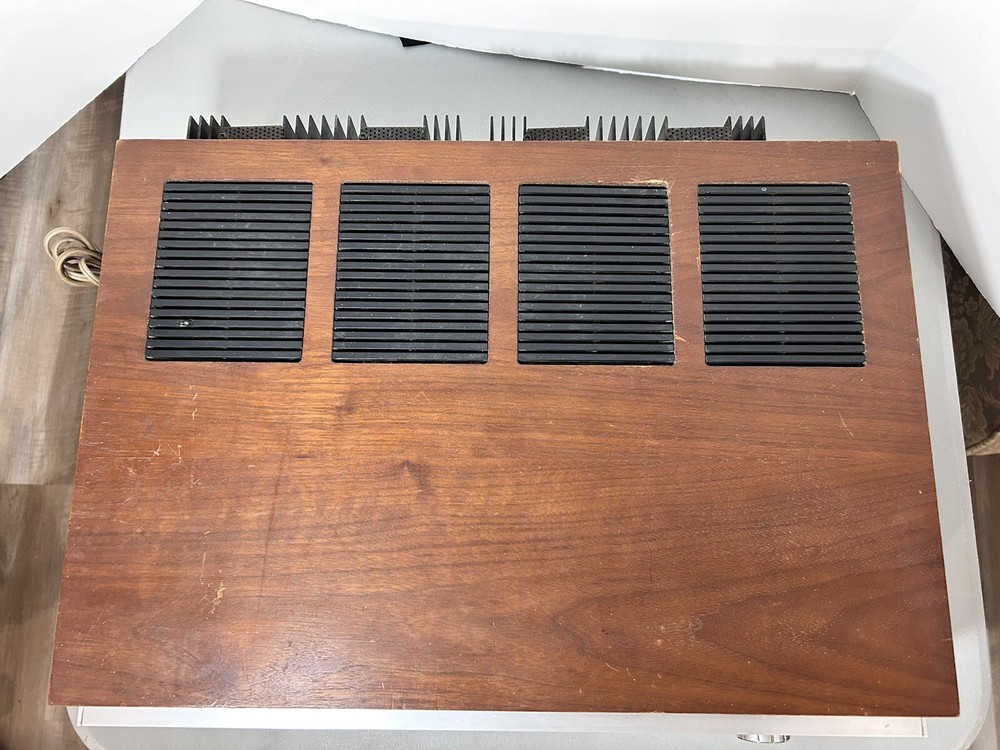

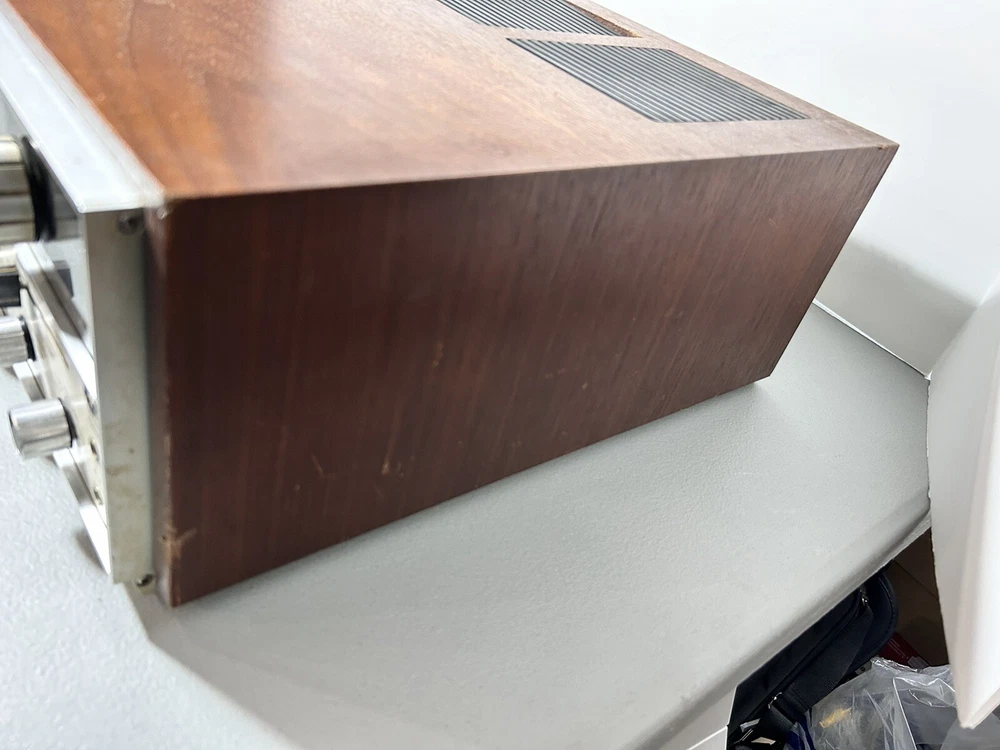

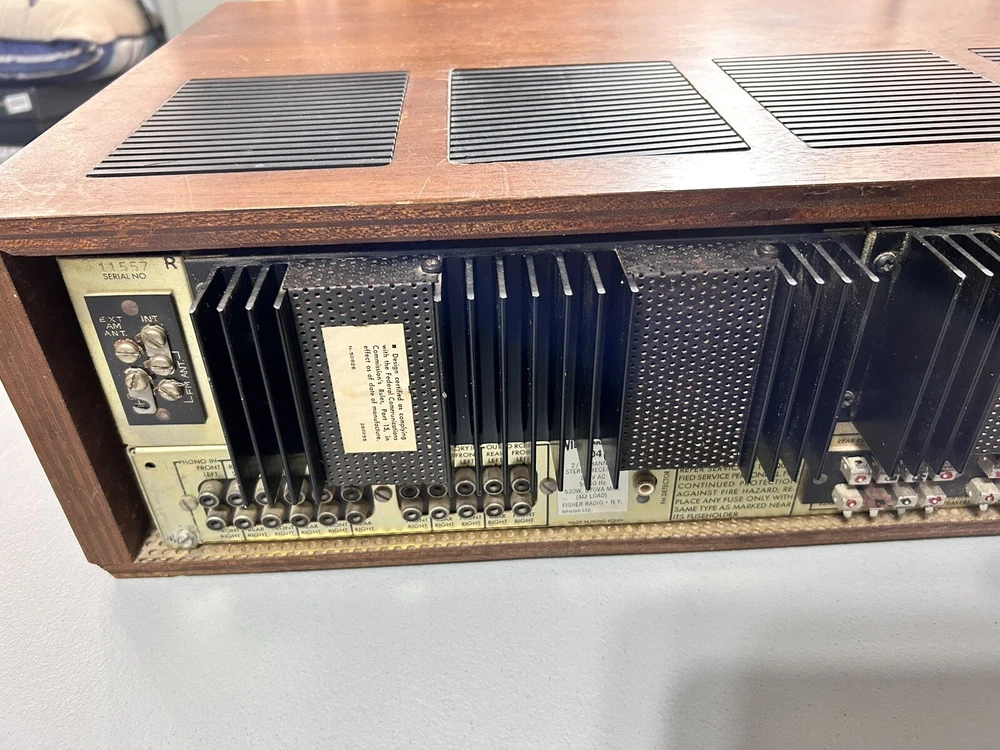

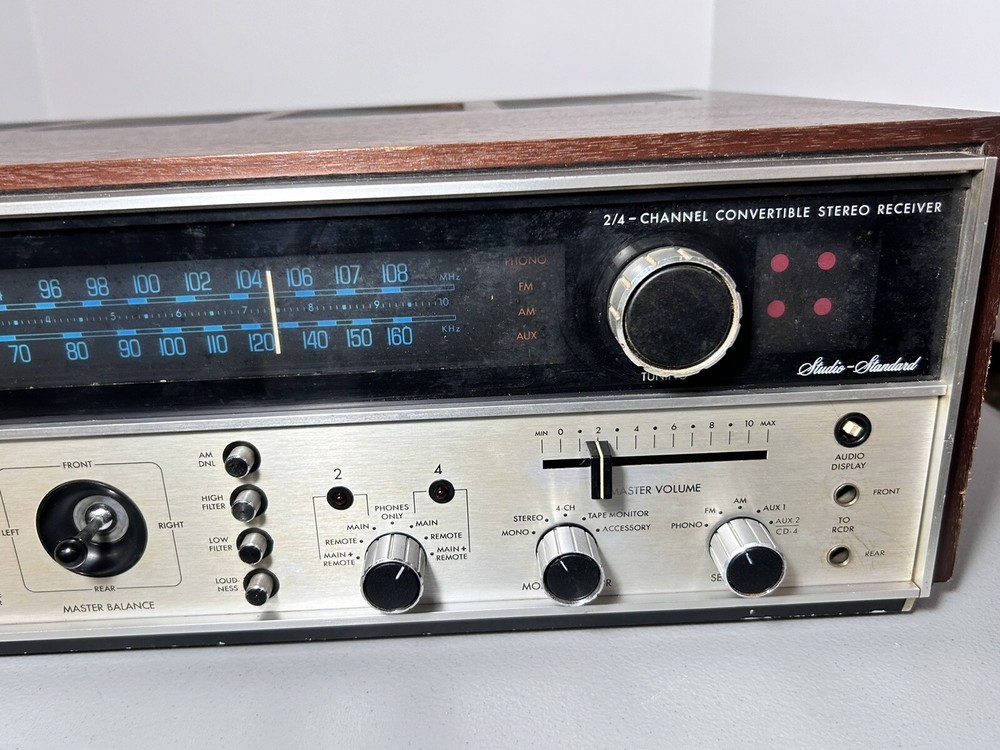

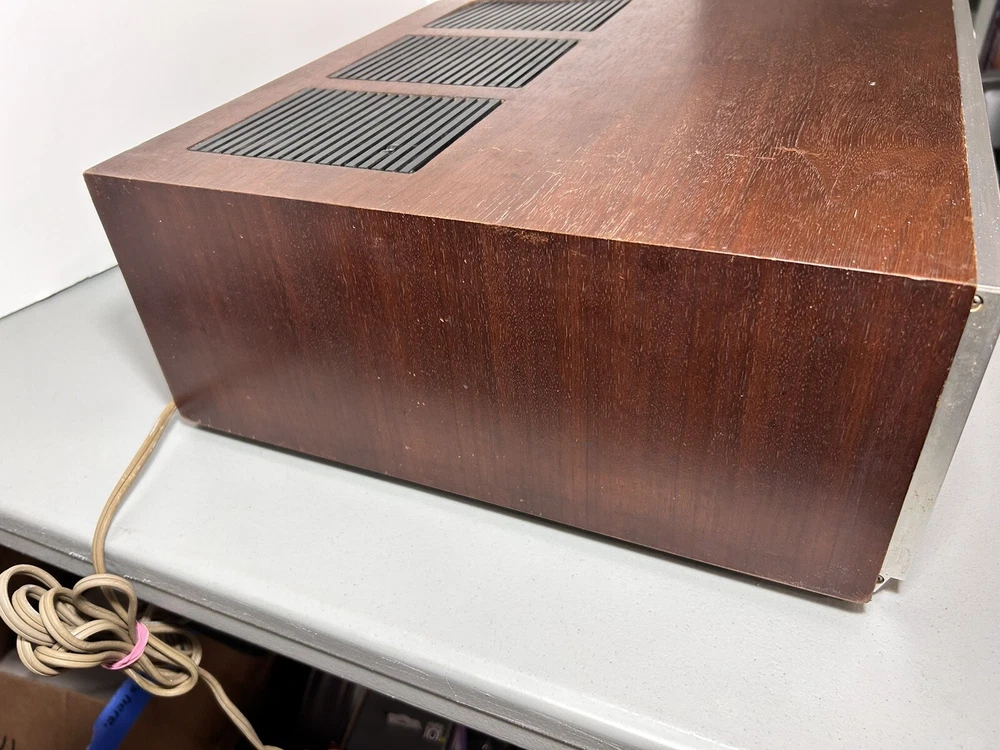

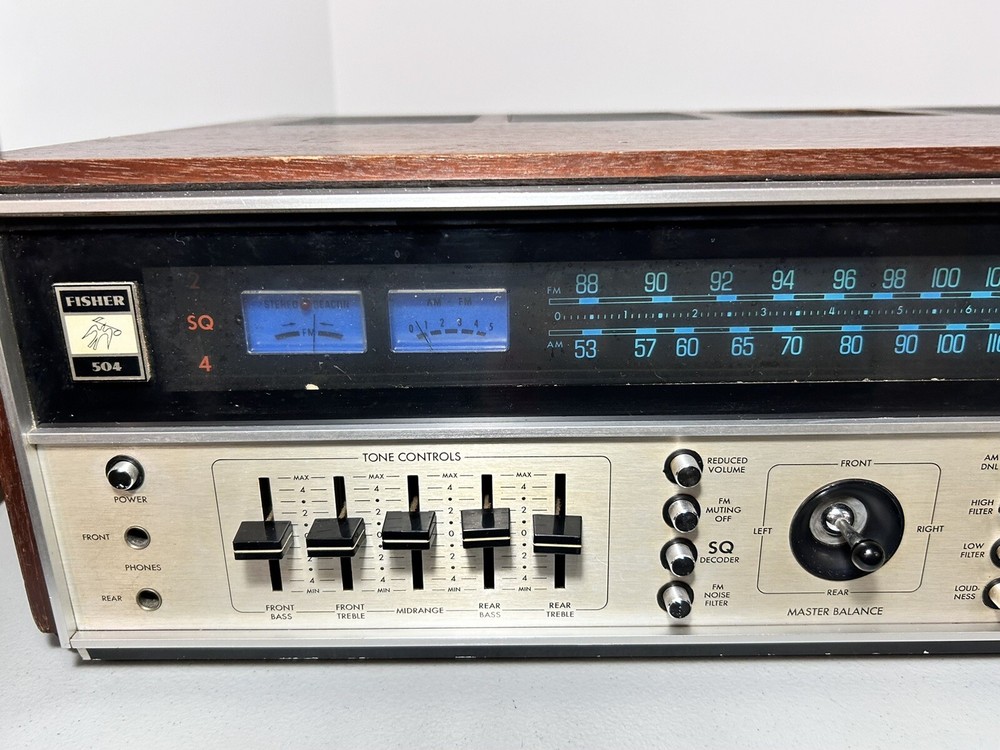

Vintage Fisher 504 Wide-Surround 2/4 Channel Stereo Receiver (110 Watts/channel) It has static when turning knobs so it needs to be cleaned. Turns on, and some of the display lights up, FM works and some of the knobs/buttons work but not sure about anything else. See pictures for condition. This Fisher 504 is a main receiver. It's a powerful unit that can bother the whole neighborhood when paired with good, capable speakers. For a turntable, you will need to make sure the ground is connected to the receiver for the best results. The AUX input can be used for a Bluetooth adapter. It's a big, heavy receiver. Measures 21.5" x 17.5" x 6.5". Generally Manufacturer: Fisher Model: 504 Typ: Receiver Years of construction: 1972 - 1974 Made in: USA Color: silver, walnut casing Dimensions (WxHxD): 545 x 175 x 430 mm Weight: 19.5kg New price approx.: $599.95 in 1973 connections Number of inputs: Phono: 2,7 mV / 47 kOhm, 100 mV max. Aux: 200 mV / 40 kOhm Tape Play 1, 2: 300 mV / 40 kOhm Tape Play DIN 1, 2: Antenna UKW / MW: 75 Ohm / 300 Ohm Number of exits: Tape Rec 1, 2: 300 mV Tape Rec DIN 1, 2: 40 mV Headphones: V + H separately 4 pairs of speakers Technical data amplifier Continuous power quadro operation: 8 Ohm: 4 Ohm: 4x 50 W Dynamic performance 8 Ohm: 4 Ohm: 4x 80 W Continuous power stereo operation: 8 Ohm: 2x 110 W 4 Ohm: Dynamic performance 8 Ohm: 2x 180 W 4 Ohm: Total harmonic distortion: < 0.5% (at rated power) Damping factor: 30 Frequency response: 20 - 20,000 Hz, ± 1 dB Signal-to-noise ratio: Phono: 60 dB Hochpegel: 80 dB Tone control: Bass: ± 15 dB at 50 Hz Midrange: ±8 dB at 1.5 kHz Treble: ± 12 dB at 10 kHz Loudness: + 9 dB at 100 Hz, + 4 dB at 10 kHz High Filter: - 5 dB at 100 Hz Low Filter (Subsonic): - 4 dB at 10 kHz Mute: Tuner Reception: FM, MW Frequencies: Frequency: 88 - 108 MHz MW: 530 - 1'605 kHz Frequency response: 30 - 15,000 Hz Input sensitivity: Voltage: 1.8 µV MW: 10 µV Klirrfaktor: UKW: 0.2% (Mono), 0.3% (Stereo) MW: 0,3% Signal-to-noise ratio: UKW: 70 dB MW: 58 dB Channel separation: 38 dB Selectivity: UKW: 60 dB MW: 50 dB Simultaneous wave selection: UKW: 1,2 dB Secondary wave selection: 80 dB Image frequency attenuation: UKW: 65 dB MW: 70 dB IF attenuation: UKW: 100 dB MW: 90 dB AM rejection: 55dB Special equipment 2-/4-Kanal Receiver SQ-Matrix Decoder Joystick for speaker tuning If you have any questions, please let us know. Smoke-free environment. The item color may not be exactly as it appears in the photos due to lighting and the device screen coloring. Photos are part of the description. We ship all items within two business days after payment. We do not ship on holidays or weekends. Please see other items we sell. We strive to earn positive 5-star feedback for every item. If you are happy with your purchase, please take a moment to leave a positive 5-star feedback. If you have any issues with your purchase, please contact us directly using eBay’s message service so we can resolve the issue to earn your positive 5-star feedback. We accept an item back within 30 days of the original purchase date with a full refund less shipping. All returns must come back in the same condition they were shipped out. To qualify for full refund please be mindful to rewrap in original packaging for safe arrival back to us.
